应用场景 Application Scenarios
应用场景 1
Scenario 1
识别 Recognition
二维码读取 · 字符读取 · 条码识别 QR Code Reading · OCR · Barcode Recognition

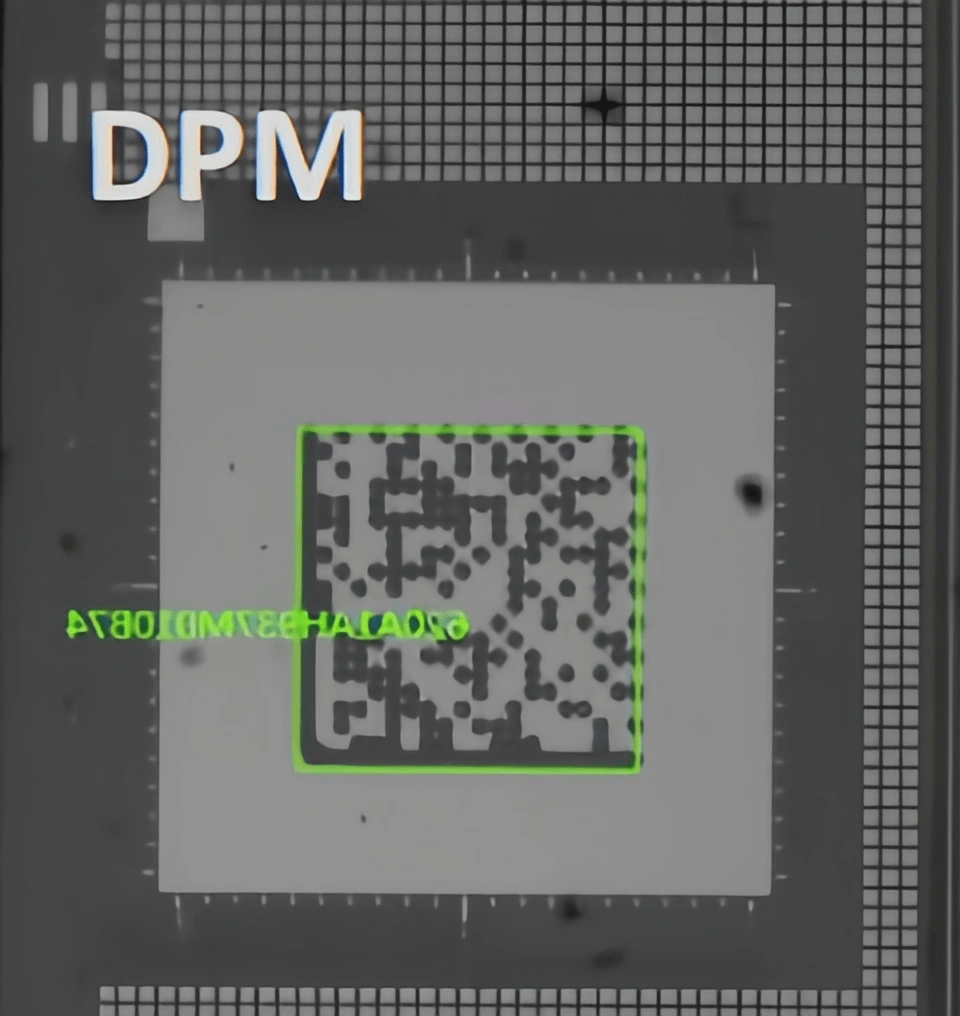

二维码读取 QR Code Reading
支持DPM、DataMatrix、QR Code等多种二维码类型识别，适用于电子元器件、PCB板、金属零件等复杂表面的追溯码读取
Supports DPM, DataMatrix, QR Code and other 2D code types, suitable for traceability code reading on complex surfaces such as electronic components, PCB boards, and metal parts
- 支持低对比度、模糊、倾斜码识别
- Support low contrast, blurry, tilted code recognition
- 识别率 > 99.9%
- Recognition rate > 99.9%
- 单次识别时间 < 50ms
- Single recognition time < 50ms

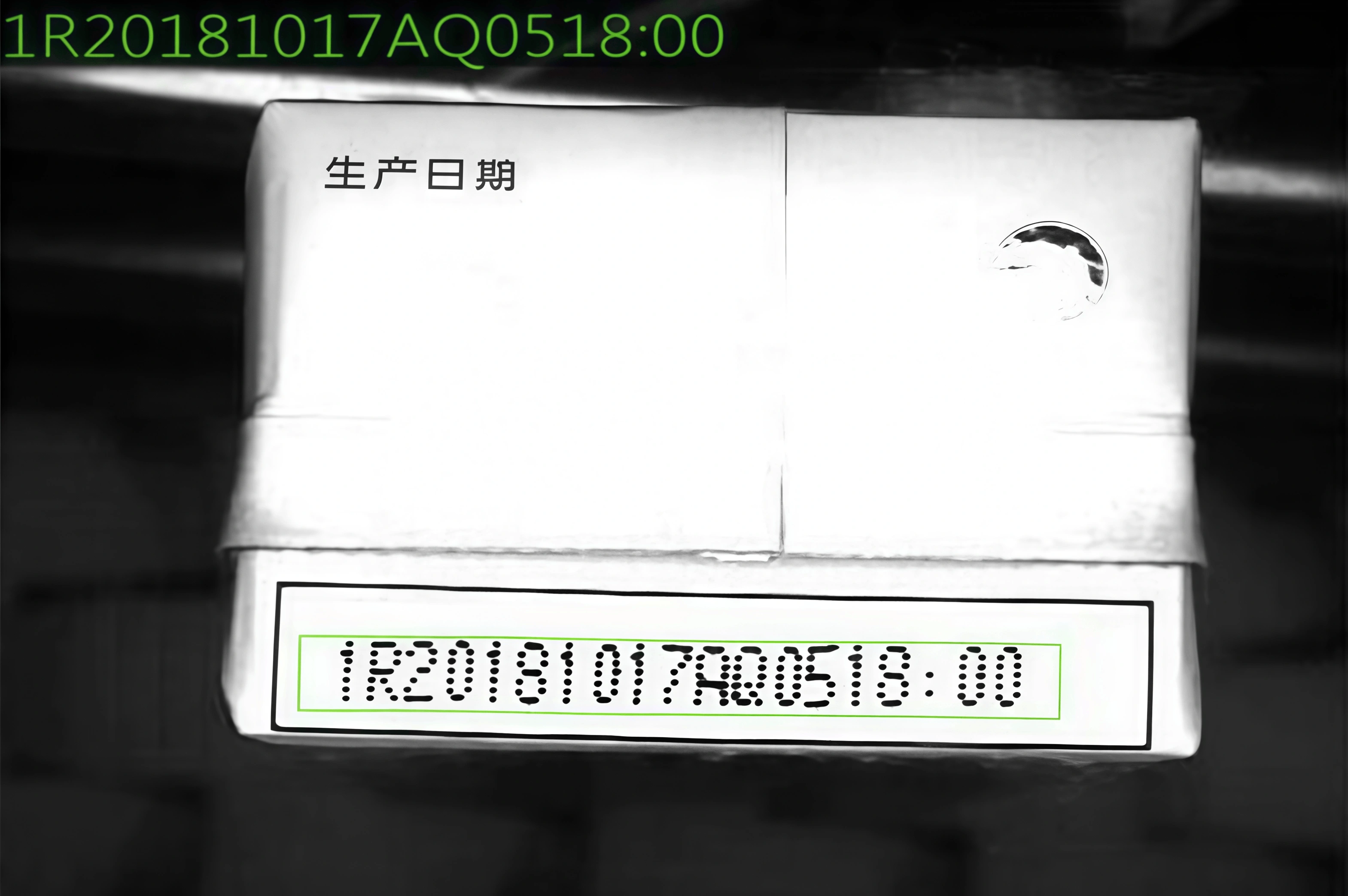

字符读取 OCR Recognition
采用深度学习OCR技术，支持打印字符、激光雕刻、点阵字符等多种字符类型识别，可读取生产日期、批次号、序列号等关键信息
Using deep learning OCR technology, supports printed characters, laser engraving, dot matrix characters recognition, reading production date, batch number, serial number and other key information
- 支持中英文、数字混合识别
- Support Chinese, English, and numeric mixed recognition
- 自适应光照变化
- Adaptive to lighting changes
- 可训练自定义字体模型
- Trainable custom font models
应用场景 2
Scenario 2
测量 Measurement
平面度测量 · 孔径测量 · 尺寸检测 Flatness Measurement · Hole Diameter · Dimension Inspection

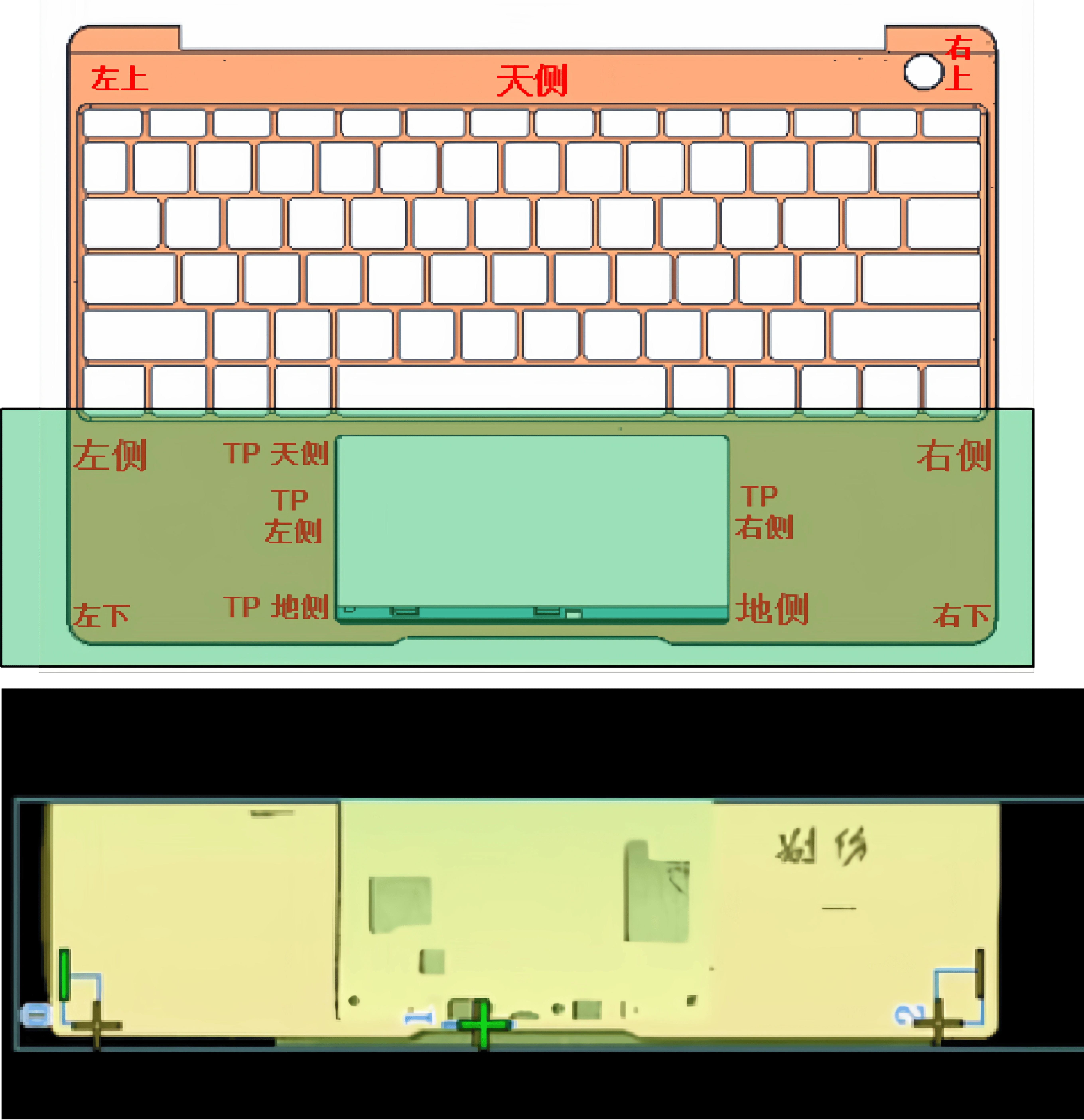

笔记外壳平面度测量 Notebook Flatness Measurement
采用高精度视觉测量技术，对笔记本电脑外壳进行多区域平面度检测，支持天侧、地侧、左右侧等多个测量区域的自动定位与测量
Using high-precision visual measurement technology for multi-zone flatness detection of notebook shells, supporting automatic positioning and measurement of multiple areas including top, bottom, left and right sides
- 多区域同步测量
- Multi-zone simultaneous measurement
- 测量精度 ±0.02mm
- Measurement accuracy ±0.02mm
- 支持自定义测量区域
- Support custom measurement zones

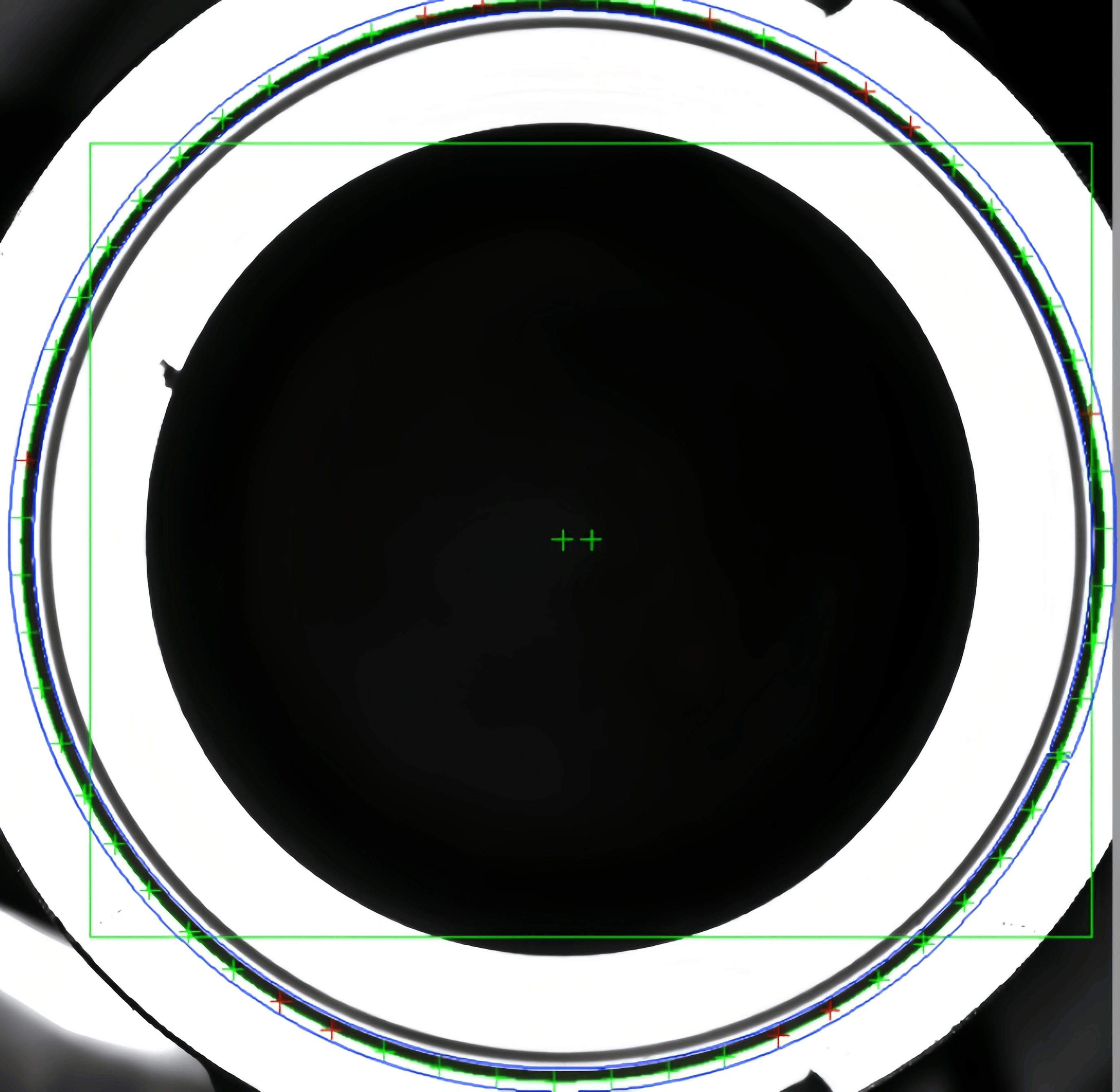

汽车零部件孔径测量 Automotive Parts Hole Measurement
采用高精度圆形拟合算法，对汽车零部件孔径进行精密测量，支持内径、外径、同心度等多种测量项目，满足汽车行业严格的质量标准
Using high-precision circle fitting algorithms for precise measurement of automotive part hole diameters, supporting inner diameter, outer diameter, concentricity and other measurement items to meet strict automotive quality standards
- 亚像素级边缘检测
- Sub-pixel edge detection
- 测量精度 ±0.01mm
- Measurement accuracy ±0.01mm
- 支持圆度/同心度分析
- Support roundness/concentricity analysis
应用场景 3
Scenario 3
引导定位 Guidance & Positioning
自动拾取 · 传送跟踪 · 精确放置 · 姿态调整 Auto Pickup · Conveyor Tracking · Precise Placement · Posture Adjustment

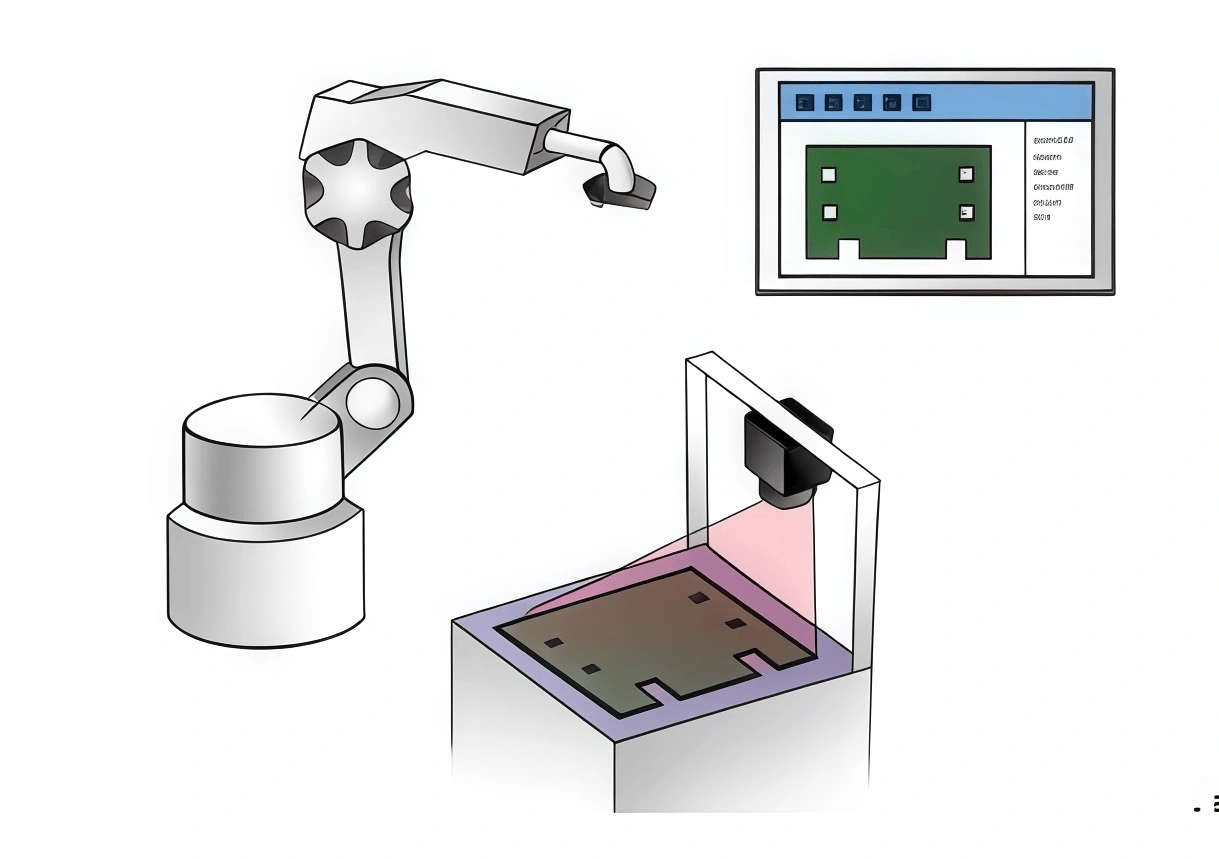

自动拾取
Auto Pickup
提高拾取精度，降低机械固定成本 Improve pickup accuracy, reduce mechanical fixture costs

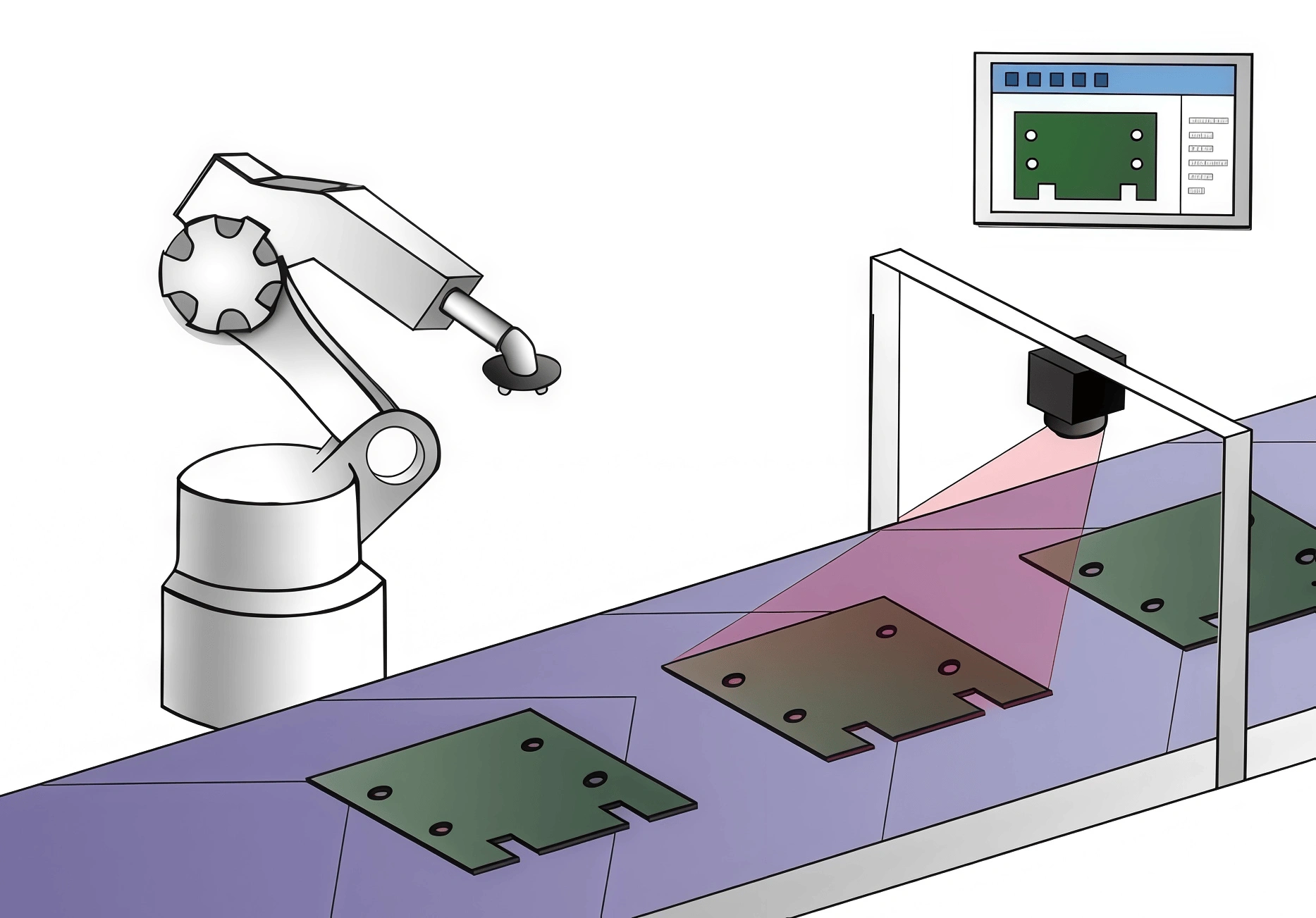

传送跟踪
Conveyor Tracking
视觉跟踪传送带上移动的产品，进行精确定位及拾取 Visual tracking of moving products on conveyor for precise positioning and pickup

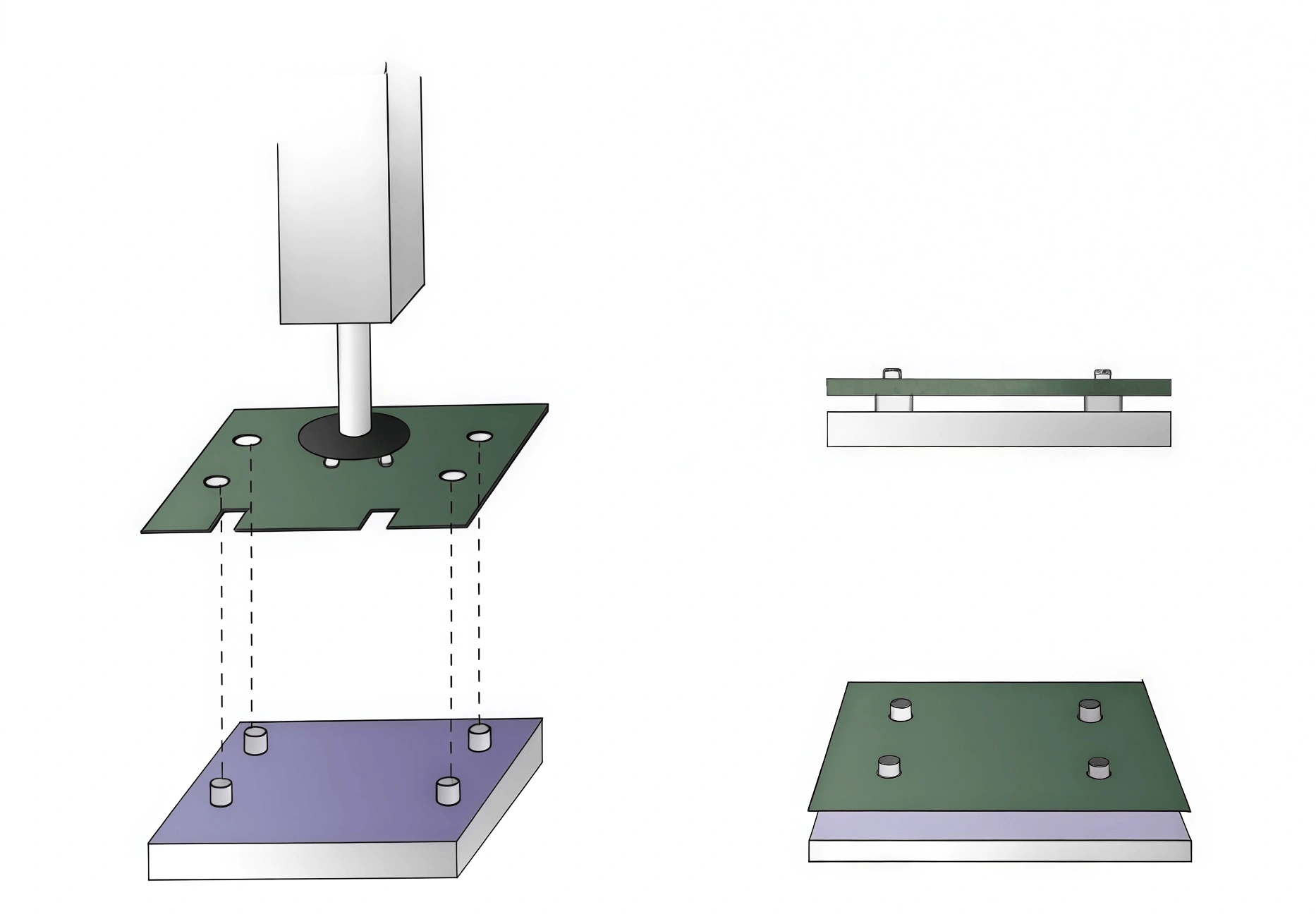

精确放置
Precise Placement
精确放置到装配和加工位置 Precise placement to assembly and processing positions

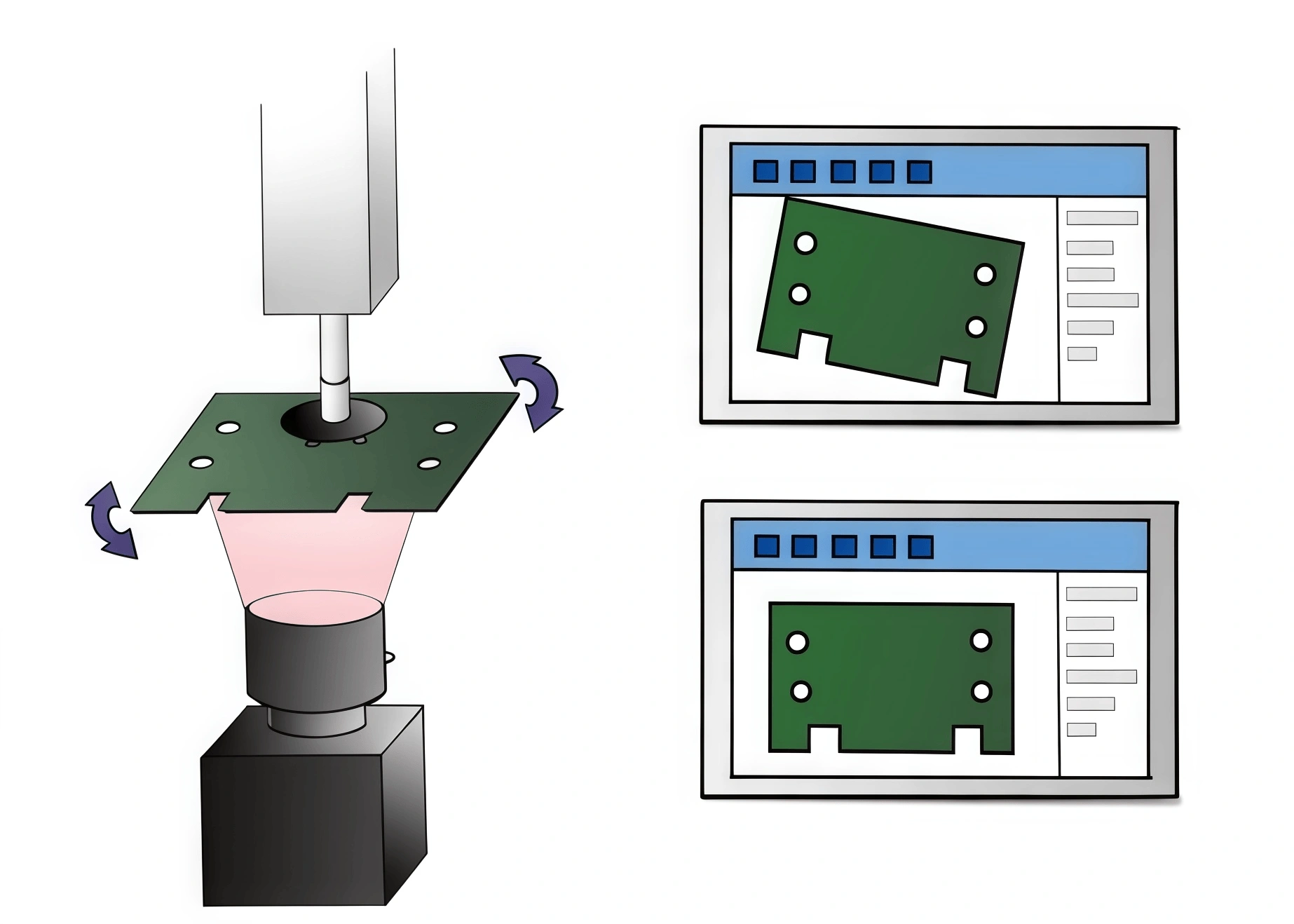

姿态调整
Posture Adjustment
从拾取到放置过程中对产品姿态进行精确调整 Precise posture adjustment during pickup to placement process
